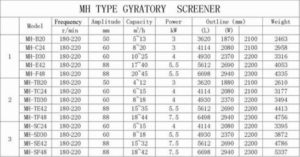

Technical Parameter
The Gyratory Reciprocating Motion gradually diminishes along the length of the machine to an elliptical path and finally to a nearly straight line motion at the discharge end.When material fall into the inlet of the Stainless Steel Gyratory Screener, the baffle and distributer will spread the material materials first, the material movement is the reciprocicating gyatory like the rotex gyratory screener.
Stage 1 When the material fall onto the gyratory vibrating screen deck, the material will disperse soon until the material bed will cover screen mesh along the screen width.
Stage 2 The material bed thickness is suitable for screening after first stage material distribution, and the material movement path become the elliptical from circle, the most material screening work will be done in this stage.
Stage 3 After first two stage screening, the material screening work almost finished in this stage, the material movement path become linear from elliptical, the path distance will be short and the material will flow out from the outlet soon.
